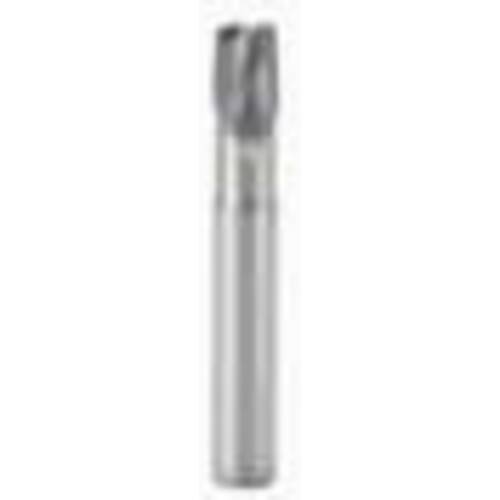

| Cutting Diameter (DC) | 6 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 7 mm | Usable Length (LU) | 14 mm |
| Overall Length (OAL) | 55 mm | Corner Radius (RE) | 0.6 mm |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.2362″ |
| Flute Helix Angle (FHA) | 20 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.0440
